Strut Channel 4-Hole Cross Plate HDG – ACB-212 HDG
SKU: ACB-212-HDG
$8.00
Sale price
$8.00
Regular price
Skip to product information
Strut Channel 4-Hole Cross Plate HDG – ACB-212 HDG
$8.00
Sale price
$8.00
Regular price
SKU # ACB-212 HDG
Strut Channel 4-Hole Cross Plate
Hot-Dip Galvanized Steel

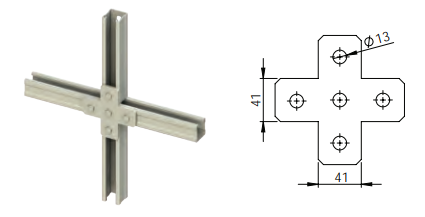

The ACB-212 HDG is a 4-hole X-shaped cross plate for 4-way strut channel connections, structural junction points, and cable tray support frames requiring connections in all four directions.

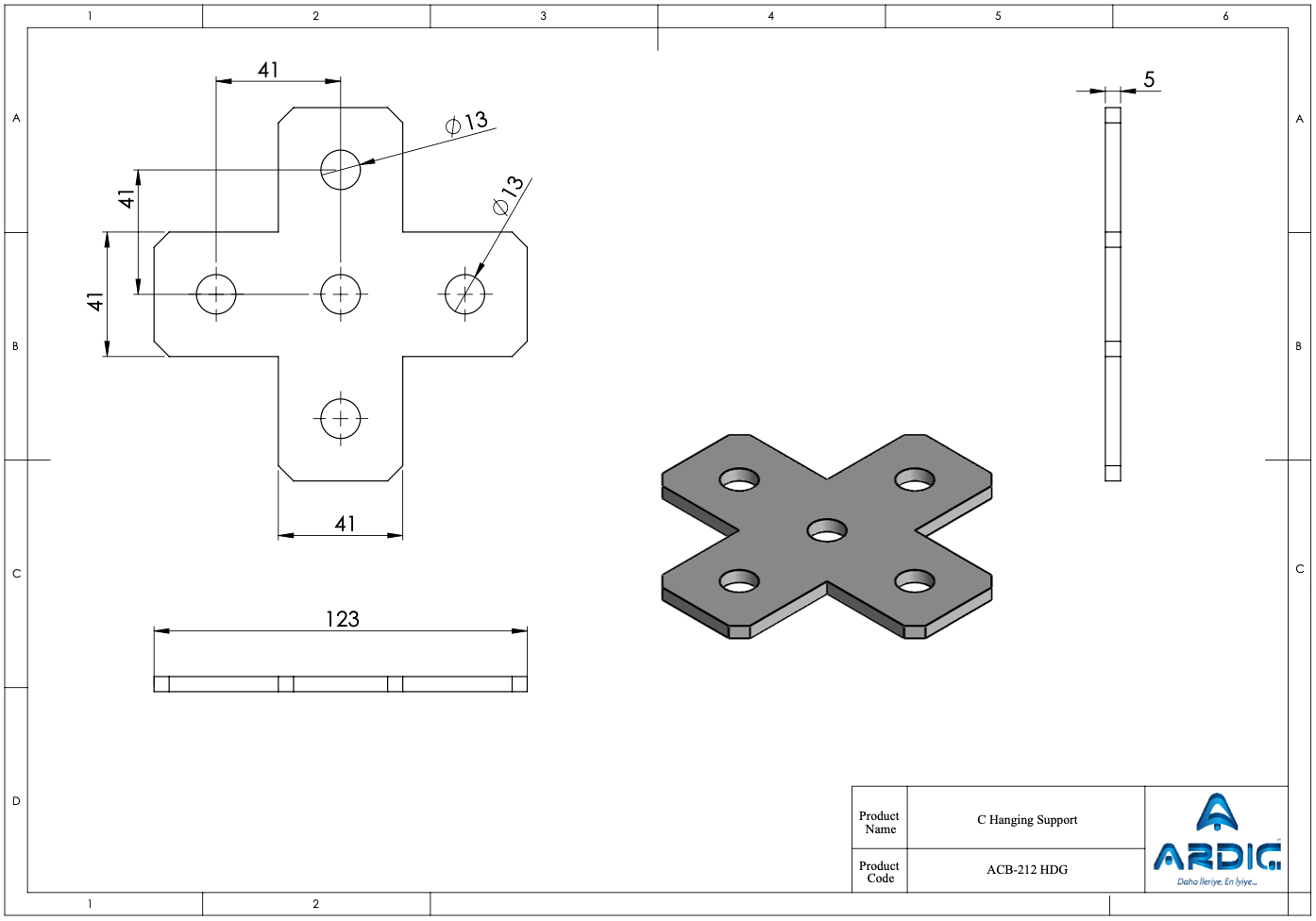

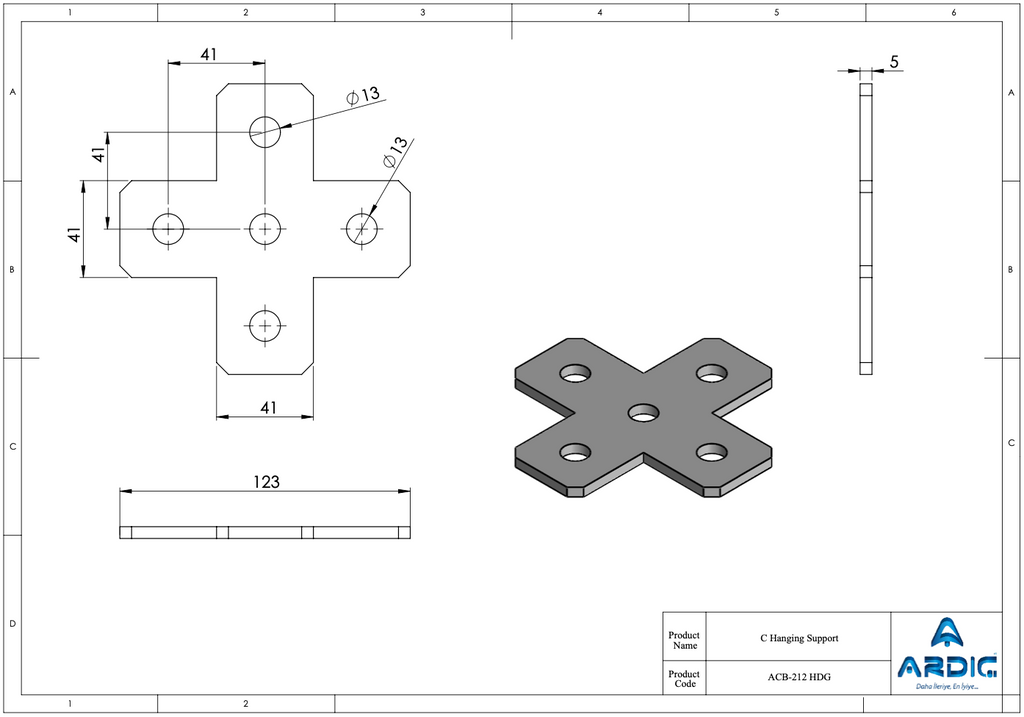

Dimensions
| Overall Size | 4-27/32" × 4-27/32" (123 × 123 mm) | |
| Thickness | 3/16" (5 mm) | |
| Hole Spacing | 1-5/8" (41 mm) o.c. | |
| Hole Diameter | 1/2" (13 mm) | |
| Mounting Holes | 4 holes, cross/X-pattern |
Specifications
- Product Code: ACB-212 HDG
- Finish: Hot-Dip Galvanized (HDG)
- Compatible With: Standard 1-5/8" (41 mm) strut channel systems (Unistrut®-compatible)
- Application: 4-way cross junctions, structural strut connections, cable tray support frames
