SKU # ACB-211-C HDG
Strut Channel 7-Hole T-Bracket Plate
Hot-Dip Galvanized Steel

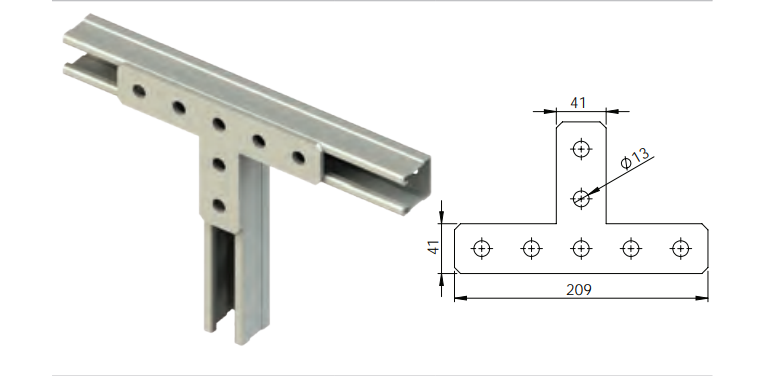

The ACB-211-C HDG is a heavy-duty 7-hole large T-bracket plate for wide-span 3-way strut channel connections, structural T-junction mounts, and cable tray support frames requiring extra bolt pattern coverage.

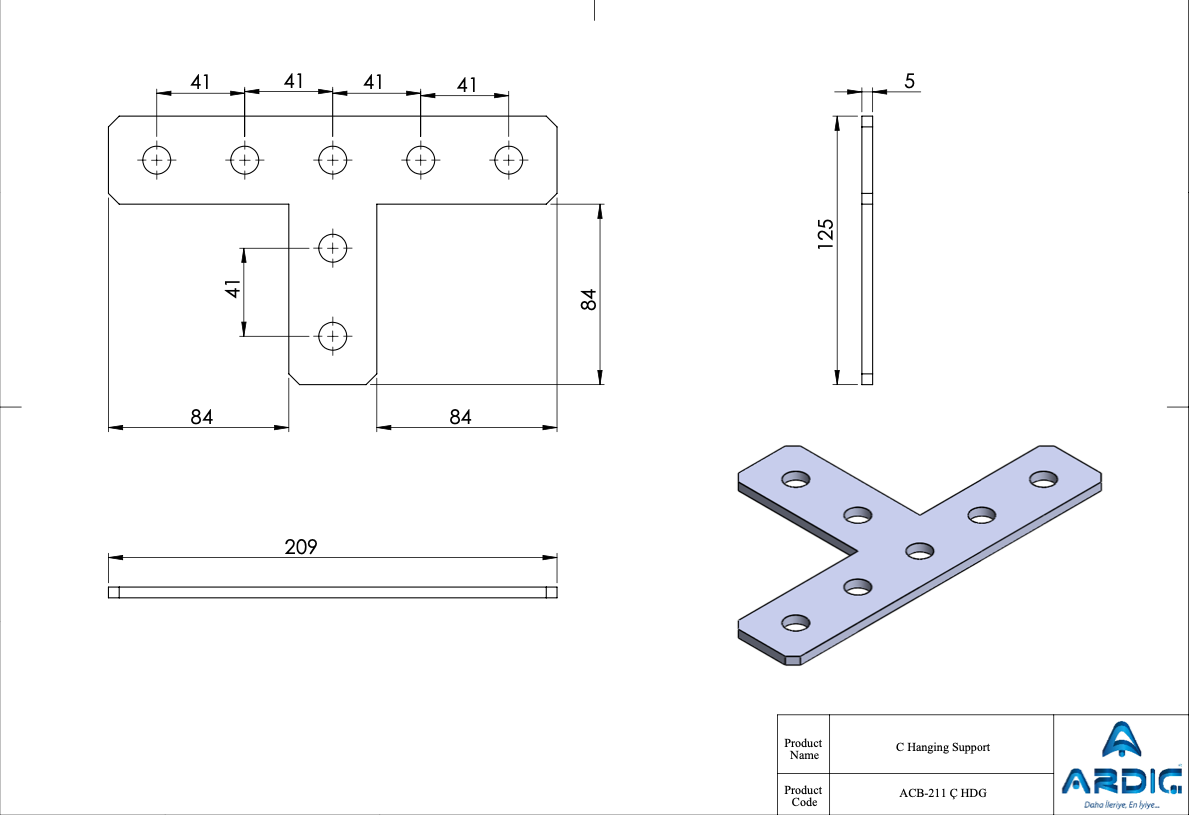

Dimensions
| Overall Length | 8-1/4" (209 mm) | |
| Overall Width | 4-27/32" (125 mm) | |
| Thickness | 3/16" (5 mm) | |
| Hole Spacing | 1-5/8" (41 mm) o.c. | |
| Mounting Holes | 7 holes, T-pattern (5 on top bar, 2 on stem) |
Specifications
- Product Code: ACB-211-C HDG
- Finish: Hot-Dip Galvanized (HDG)
- Compatible With: Standard 1-5/8" (41 mm) strut channel systems (Unistrut®-compatible)
- Application: Wide-span T-junction connections, structural strut mounts, cable tray support frames
