Strut Channel 90° Wall Bracket HDG – ACB-407 HDG
SKU: ACB-407-HDG
$4.50
Sale price
$4.50
Regular price
Skip to product information
Strut Channel 90° Wall Bracket HDG – ACB-407 HDG
$4.50
Sale price
$4.50
Regular price
SKU # ACB-407 HDG

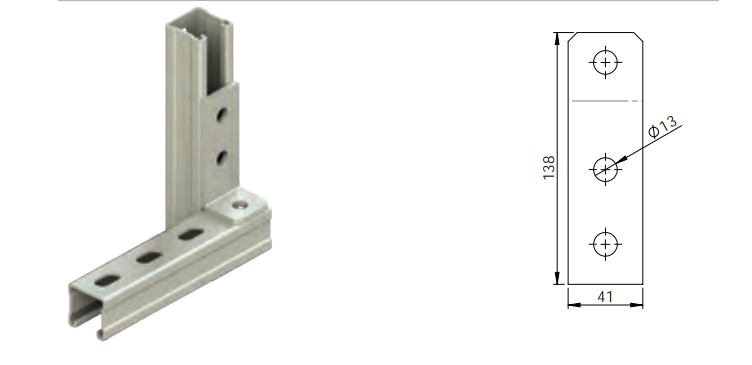

Strut Channel 90° Wall Bracket — Long Base
Hot-Dip Galvanized Steel
The ACB-407 HDG is a 90° C-channel wall bracket with an extended 3-hole base plate for heavy-duty strut channel wall and ceiling mounting in industrial and commercial installations.
Dimensions
| Base Plate Length | 5-7/16" (138 mm) | |
| Base Plate Width | 1-5/8" (41 mm) | |
| Hole Diameter | 1/2" (13 mm) | |
| Mounting Holes | 3 holes on base plate |
Specifications
- Product Code: ACB-407 HDG
- Finish: Hot-Dip Galvanized (HDG)
- Compatible With: Standard 1-5/8" (41 mm) strut channel systems (Unistrut®-compatible)
- Application: Heavy-duty wall & ceiling strut channel mounting
