Strut Channel Base Plate Bracket 13/16" HDG – AC-1-1-21 HDG
SKU: AC-1-1-21 HDG
$19.50
Sale price
$19.50
Regular price
Skip to product information
Strut Channel Base Plate Bracket 13/16" HDG – AC-1-1-21 HDG
$19.50
Sale price
$19.50
Regular price
SKU # AC-1-1-21 HDG

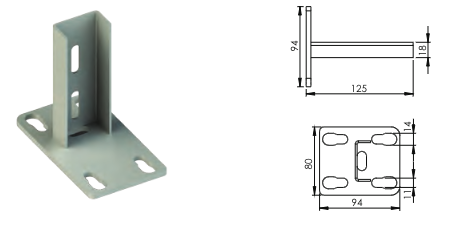

Strut Channel Base Plate Bracket 13/16"
Hot-dip galvanized heavy-duty anchor point for vertical strut channel installations. Whether mounting cable tray support posts from the floor or anchoring overhead runs to the ceiling, this bracket delivers rock-solid stability and long-lasting corrosion resistance.

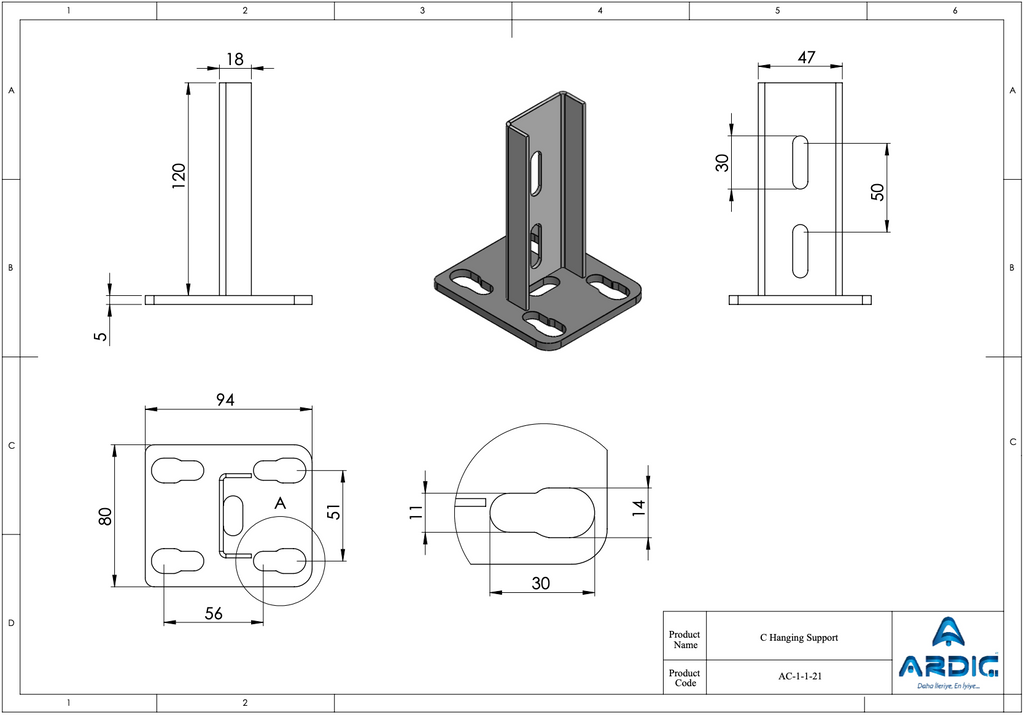

Dimensions
| Compatible Profile | 1-5/8" × 13/16" (41 × 21 mm) C Profile | |
| Channel Width | 13/16" (18 mm) | |
| Height | 4-3/4" (120 mm) | |
| Base Plate | 3-3/4" × 3-1/8" (94 × 80 mm) | |
| Base Plate Thickness | 0.197" (5 mm) | |
| Wall Thickness | 0.079" (2 mm) | |
| Base Slot Spacing | 2-3/16" × 2" (56 × 51 mm) | |
| Upright Slot Spacing | 2" (50 mm) pitch |
Specifications
- Finish: Hot-Dip Galvanized (HDG)
- Product Code: AC-1-1-21 HDG
- Compatible With: Standard 1-5/8" × 13/16" strut channel systems (Unistrut®-compatible)
