SKU # ACB-612-T HDG
Strut Channel Twin C-Channel Floor Base Bracket
Hot-Dip Galvanized Steel
The ACB-612-T HDG is a heavy-duty twin C-channel floor and wall base bracket featuring two back-to-back strut channels on a triangular gusset base plate — designed for freestanding strut channel posts, floor-mounted cable tray supports, and structural upright installations in industrial and commercial applications.

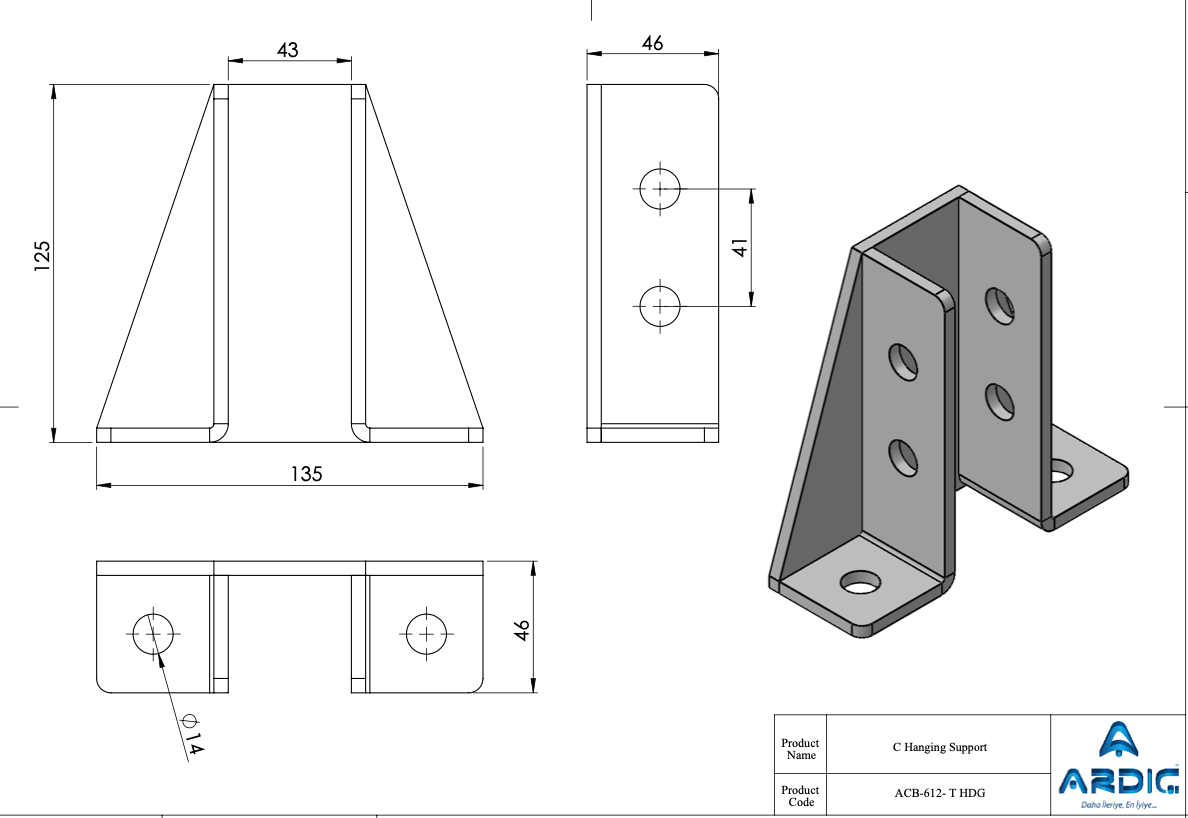

Dimensions
| Base Plate Length | 5-5/16" (135 mm) | |
| Base Plate Width | 1-13/16" (46 mm) | |
| Twin Channel Height | 4-29/32" (125 mm) | |
| Base Width | 5-5/16" (135 mm) | |
| Hole Diameter | 9/16" (14 mm) | |
| Mounting Holes | 2 holes on base plate |
Specifications
- Product Code: ACB-612-T HDG
- Finish: Hot-Dip Galvanized (HDG)
- Compatible With: Standard 1-5/8" (41 mm) strut channel systems (Unistrut®-compatible)
- Application: Freestanding strut channel posts, floor-mounted cable tray supports, structural upright installations
