Strut Channel Wall Bracket 1-5/8" x 13/16" x 12" HDG – ACK-41-21-30 HDG
SKU: ACK-41-21-30 HDG
$24.50
Sale price
$24.50
Regular price
Skip to product information
Strut Channel Wall Bracket 1-5/8" x 13/16" x 12" HDG – ACK-41-21-30 HDG
$24.50
Sale price
$24.50
Regular price
SKU # ACK-41-21-30 HDG

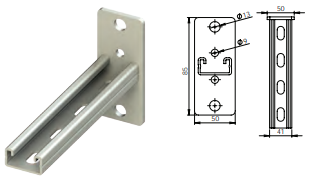

Strut Channel Wall Bracket 1-5/8" × 13/16" × 12"
Hot-dip galvanized wall bracket delivering a reliable 12" support arm for wall-mounted cable tray, conduit, and pipe installations. Built from 1-5/8" × 13/16" C-profile strut with a hot-dip galvanized finish, engineered for the corrosion resistance and load capacity that industrial and commercial contractors depend on.

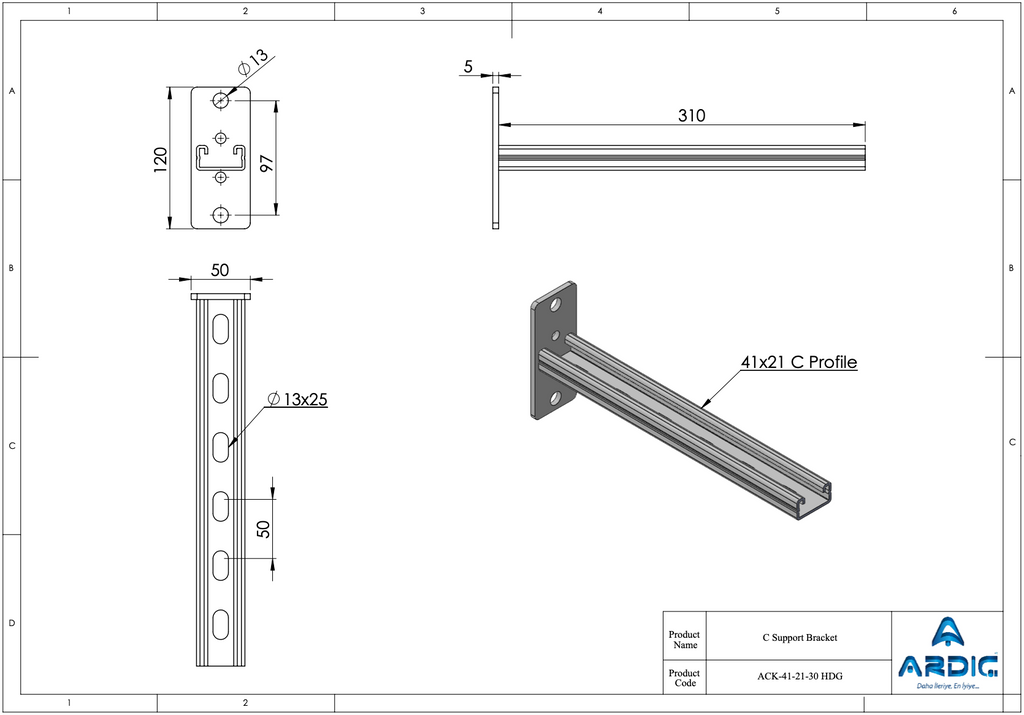

Dimensions
| Profile Type | 1-5/8" × 13/16" (41 × 21 mm) C Profile | |
| Arm Length | 12" (310 mm) | |
| Mounting Plate | 4-3/4" × 2" (120 × 50 mm) | |
| Bolt Spacing | 3-13/16" (97 mm) | |
| Hole Diameter | Ø 1/2" (Ø 13 mm) | |
| Arm Slots | 1/2" × 1" @ 2" pitch | |
| Base Plate Thickness | 0.197" (5 mm) | |
| Wall Thickness | 0.059" (1.5 mm) |
Specifications
- Finish: Hot-Dip Galvanized (HDG)
- Product Code: ACK-41-21-30 HDG
- Compatible With: Standard 1-5/8" × 13/16" strut channel systems (Unistrut®-compatible)
