ACB-12 HDG C Hanging Support Bracket for Strut Channel #ACB-12 HDG

SKU #  ACB-12 HDG

Heavy-Duty C Hanging Support Bracket

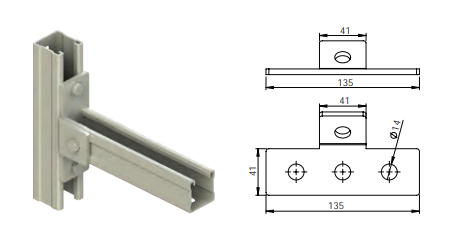

The ACB-12 HDG is a hot-dip galvanized three-hole hanging support bracket that ties strut channel to overhead structure, giving contractors and distributors a robust, load-rated anchor for cable tray, conduit, and support runs.

• Material & finish: Hot-dip galvanized (HDG) steel for superior corrosion resistance, indoor or outdoor

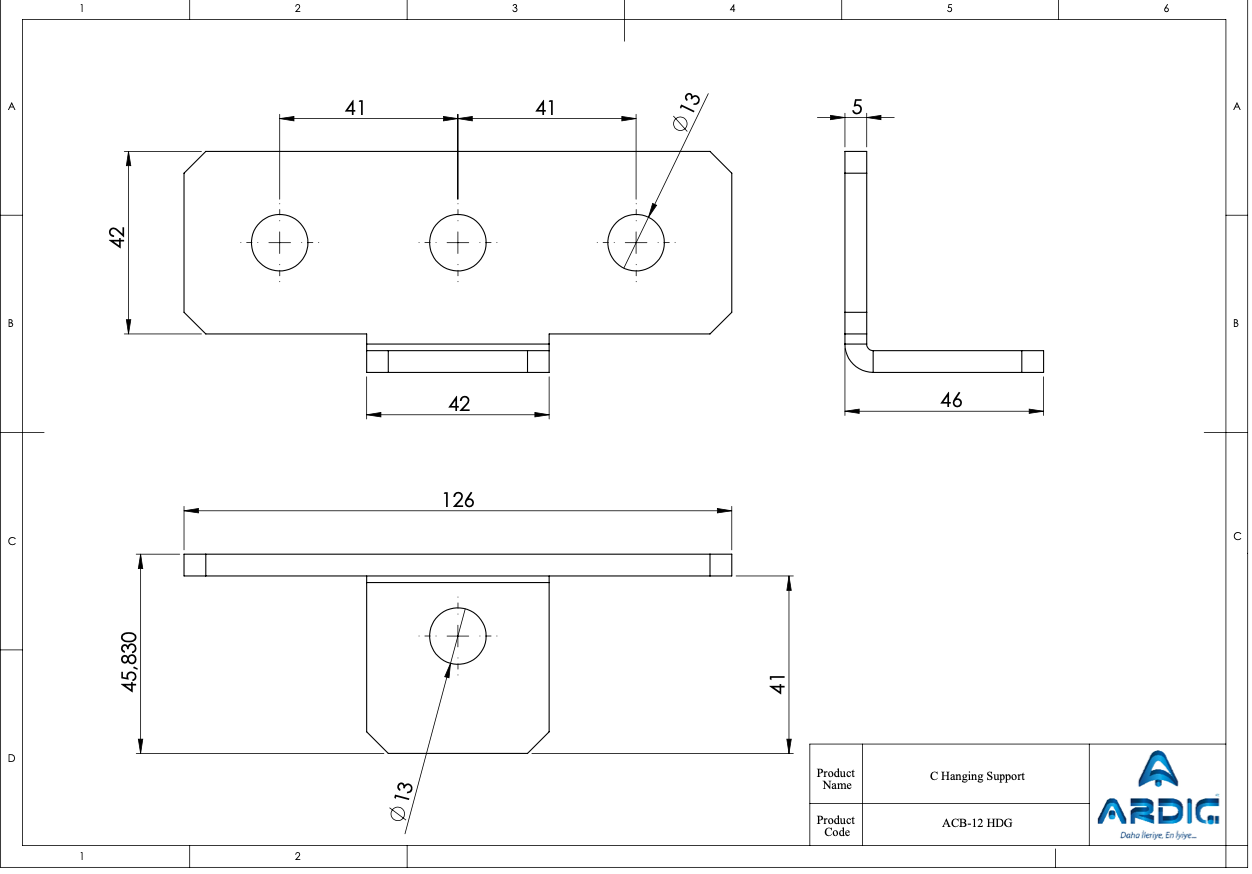

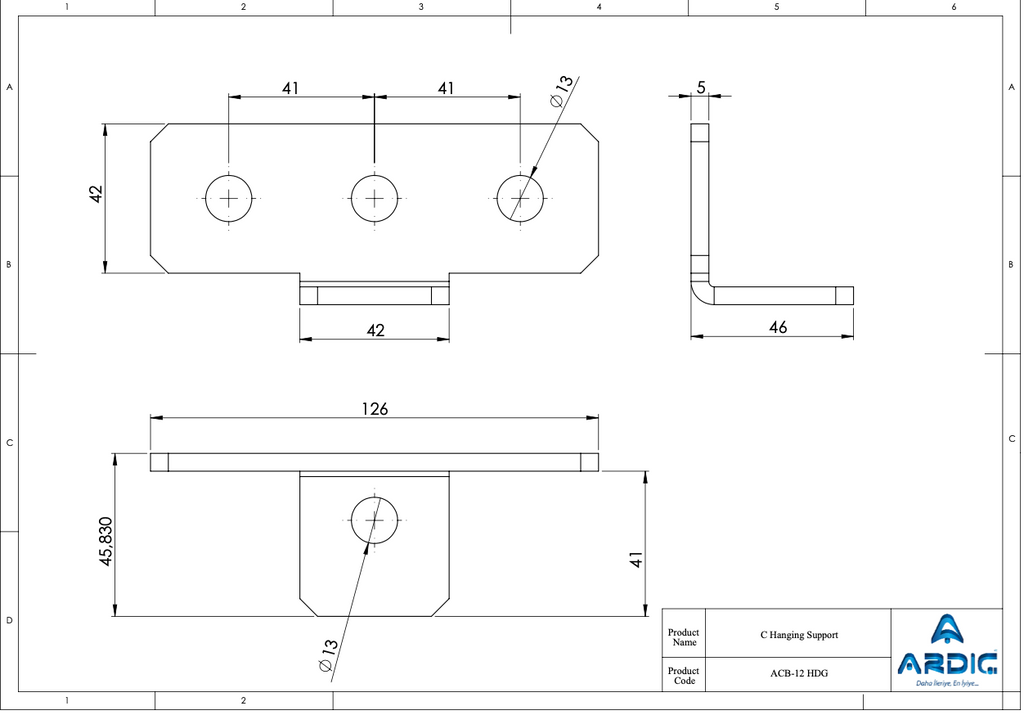

• Base plate length: 5-5/16" (135 mm)
• Plate width: 1-5/8" (42 mm)
• Hole spacing: 1-5/8" (41 mm) center-to-center, three-hole pattern
• Mounting holes: 1/2" (13 mm) dia.
• Flange depth: 1-13/16" (46 mm)
• Material thickness: 3/16" (5 mm)
• Installation: Bolts directly to strut channel for a rigid, load-rated connection

A dependable choice for building overhead cable management support structures quickly and securely.
