ACB-9 HDG C Hanging Support Bracket for Strut Channel #ACB-9 HDG

SKU #  ACB-9 HDG

Heavy-Duty C Hanging Support Bracket

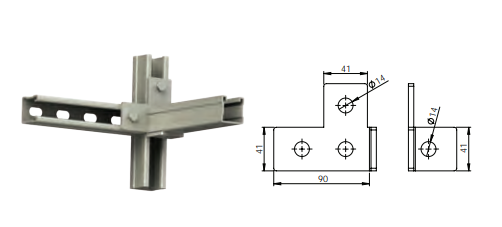

The ACB-9 HDG is a hot-dip galvanized T-shaped hanging support bracket that connects strut channel at right angles, giving contractors and distributors a strong, versatile anchor point for overhead cable tray, conduit, and support assemblies.

• Material & finish: Hot-dip galvanized (HDG) steel for superior corrosion resistance, indoor or outdoor

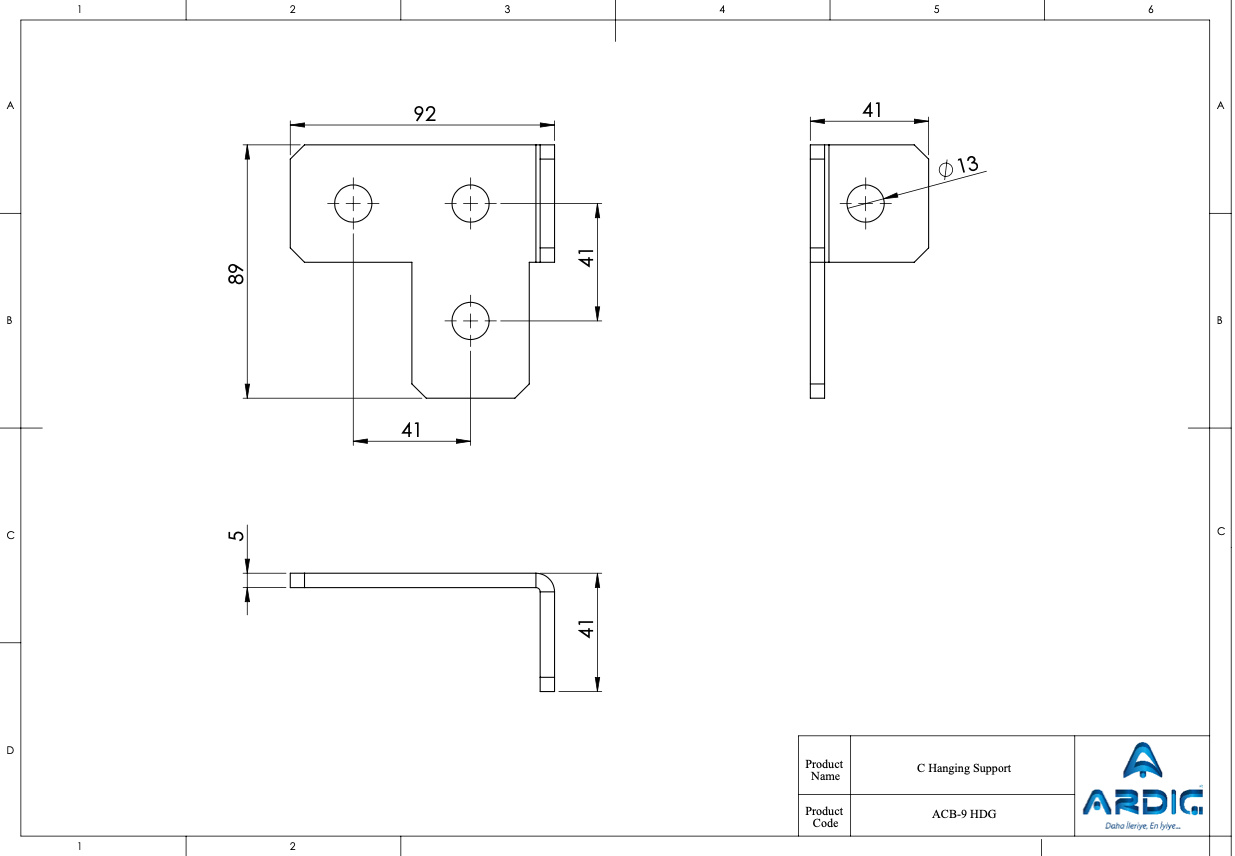

• Overall height: 3-1/2" (89 mm)
• Overall width: 3-5/8" (92 mm)
• Hole spacing: 1-5/8" (41 mm) center-to-center
• Mounting holes: 1/2" (13 mm) dia.
• Flange depth: 1-5/8" (41 mm)
• Installation: Bolts directly to strut channel for a rigid, load-rated connection

A dependable choice for building out overhead cable management support structures quickly and securely.
