SKU # ACB-19 HDG

SKU # ACB-19 HDGHot-dip galvanized 4-hole flat connection plate

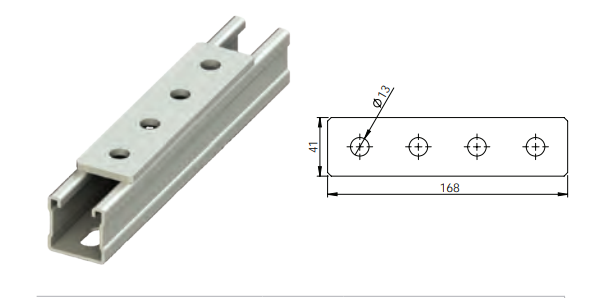

Hot-dip galvanized 4-hole flat connection plate designed for strut channel systems. This heavy-duty splice and joining plate provides a secure, corrosion-resistant connection between strut channel sections, making it ideal for cable tray support structures, conduit runs, and industrial mounting applications.

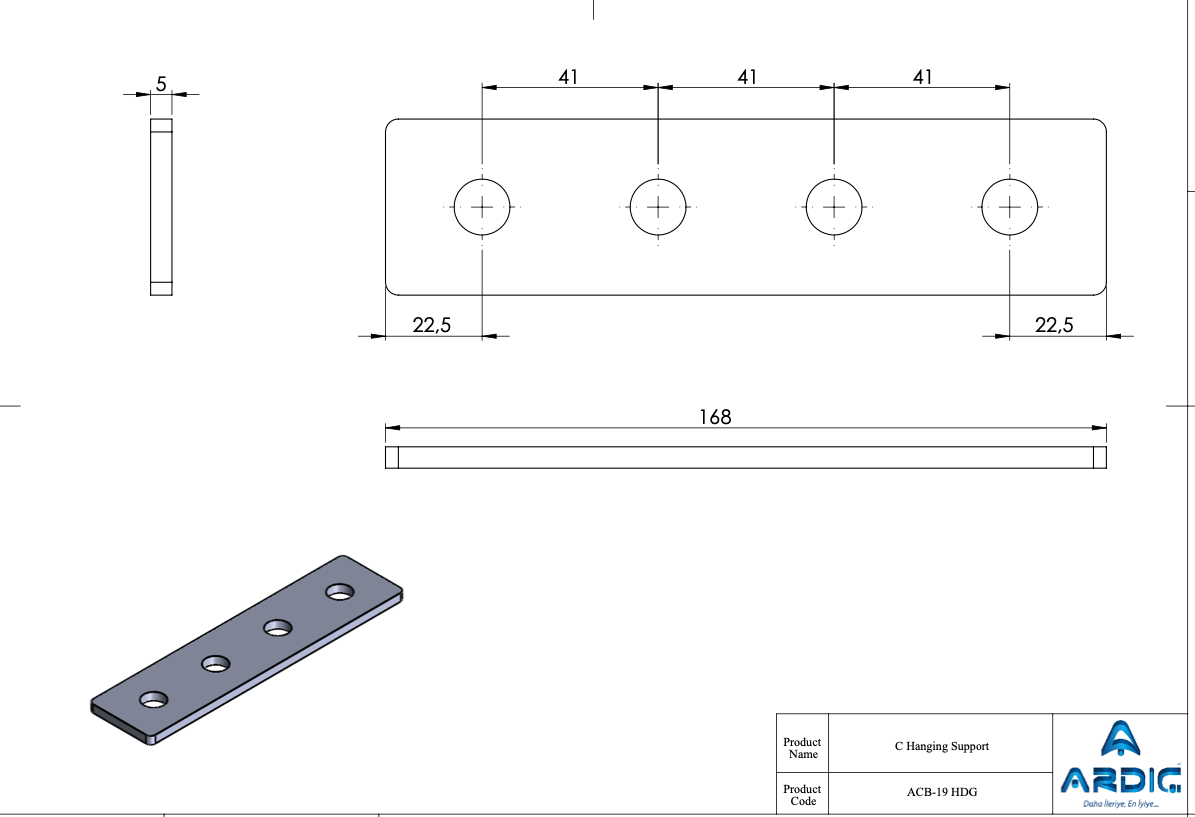

Dimensions

• Overall Length: 6.61" (168 mm)
• Width: 1.61" (41 mm)
• Thickness: 0.20" (5 mm)
• Mounting Hole Diameter: Ø 0.51" (Ø 13 mm)
• Hole Spacing: 1.61" (41 mm) center-to-center
• End Margin (each side): 0.89" (22.5 mm)
• Number of Holes: 4

Specifications

• Finish: Hot-Dip Galvanized (HDG)
• Product Code: ACB-19 HDG
• Compatible With: Standard strut / unistrut channel systems
