SKU # ACB-14 HDG

SKU #   ACB -14 HDG

C Hanging Support

Hot-dip galvanized C hanging support bracket designed for strut channel systems. Provides a secure, adjustable mounting point for suspending cable trays, conduit runs, and other structural loads from overhead strut channels.

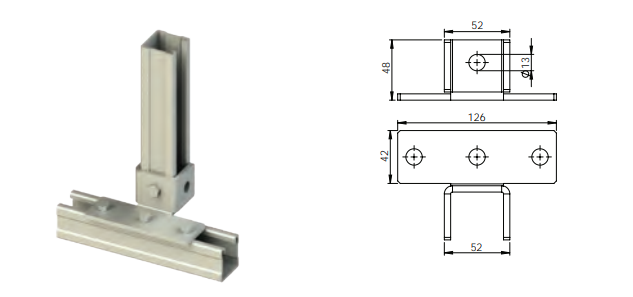

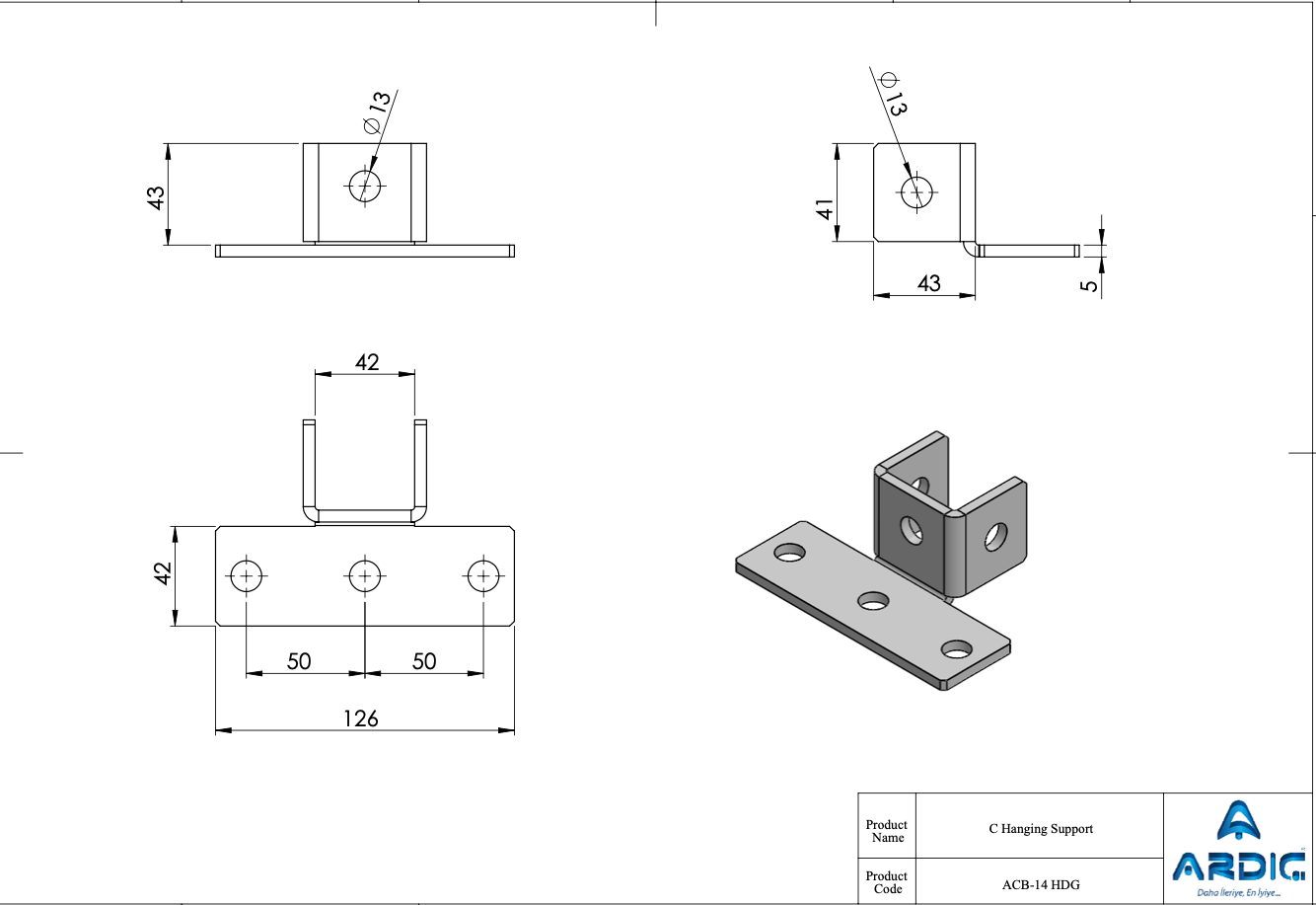

Dimensions

• Base Plate: 4.96" × 1.65" (126 × 42 mm)
• Base Plate Hole Spacing: 1.97" (50 mm) center-to-center
• Upright Channel (W × D): 1.65" × 1.65" (42 × 42 mm)
• Top Bracket Width: 2.05" (52 mm)
• Top Bracket Height: 1.69" (43 mm) | Side view: 1.61" (41 mm)
• Mounting Hole Diameter: Ø 0.51" (Ø 13 mm)
• Lip Depth: 0.20" (5 mm)

Specifications

• Finish: Hot-Dip Galvanized (HDG)
• Product Code: ACB-14 HDG
• Compatible With: Standard strut / unistrut channel systems
