C Hanging Support ACB-14 HDG
SKU: ACB-14-HDG
$0.00
Sale price
$0.00
Regular price
Skip to product information
C Hanging Support ACB-14 HDG
$0.00
Sale price
$0.00
Regular price
SKU # ACB-14 HDG
C Hanging Support

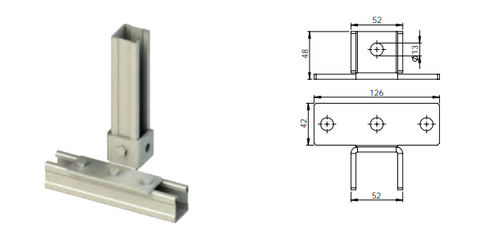

Hot-dip galvanized C hanging support bracket designed for strut channel systems. Provides a secure, adjustable mounting point for suspending cable trays, conduit runs, and other structural loads from overhead strut channels.

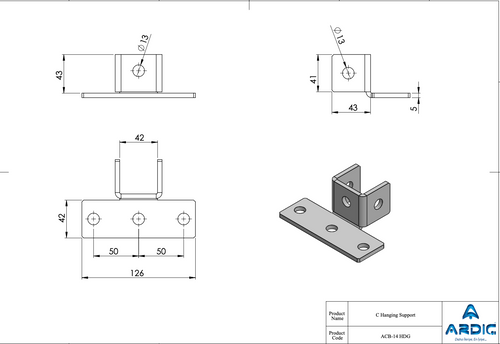

Dimensions
| Base Plate Length | 4.96" (126 mm) | |
| Base Plate Width | 1.65" (42 mm) | |
| Base Plate Hole Spacing | 1.97" (50 mm) center-to-center | |
| Upright Channel (W × D) | 1.65" × 1.65" (42 × 42 mm) | |
| Top Bracket Width | 2.05" (52 mm) | |
| Top Bracket Height | 1.69" (43 mm) | |
| Mounting Hole Diameter | Ø 0.51" (Ø 13 mm) | |
| Lip Depth | 0.20" (5 mm) |
Specifications
- Finish: Hot-Dip Galvanized (HDG)
- Product Code: ACB-14 HDG
- Compatible With: Standard strut / unistrut channel systems
